Item specifics
  • Type: Mini
  • Package: Yes
  • Brand Name: OMESHIN
  • Model Number: Car DVR
Product Description

Feature:

  • 100% brand new and high quality.

  • Quantity: 1

  • 4.3-inch 16: 9

  • Resolution: 480 * 272

  • Power supply: DC 12V-24V

  • Visual range: 96 * 54mm

  • Power consumption: 2W

  • Working temperature: -15°C ~ + 50°C

  • Storage Temperature: -20°C ~ + 70°C

  • Interface: 2 AV video interface, a standard power connector road

  • Black screen when no signal

  • Product Dimensions: 11.5CMX7.5CMX0.8CM(LengthXwidthXthick)

Specifications:

  • Image Sensor:7070

  • Video System:PAL/NTSC

  • Resolution:PAL:682(H)×504(V)NSTC:648(H)×488(V)

  • Horizontal Resolution:480TVL

  • Electronic Shutter:1s-1/10000s

  • SNR:>48dB

  • Min Illumination:0.01LUX

  • Video Output:1.0Vp-p/ 75Ω

  • View Angle:170°

  • Working Voltage:DC9V-12V±0.5V

  • Waterproof Rate:IP67

Note:

  • Connect the power cord must distinguish between positive and negative (red +, black -) If you pick the wrong, cartridge fuse blows immediately. Please replace the same parameters of cartridge fuse.

  • Two main components both are LCD screen,the surface is glass structure, please note that anti-extrusion.

  • Installation should be solid and reliable, to prevent the situation of falling when the car is brakeing or running and causing personal and equipment accidents.

  • 12v-24V DC contact should be connected to the main power supply in order to prevent excessive voltage affecting the normal use of the machine.

Package Content:

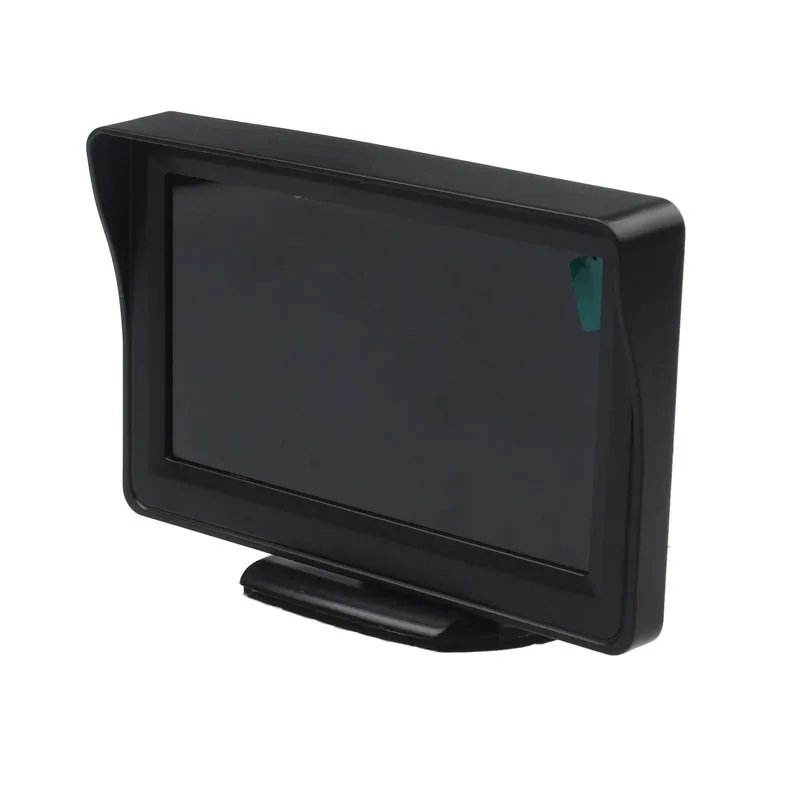

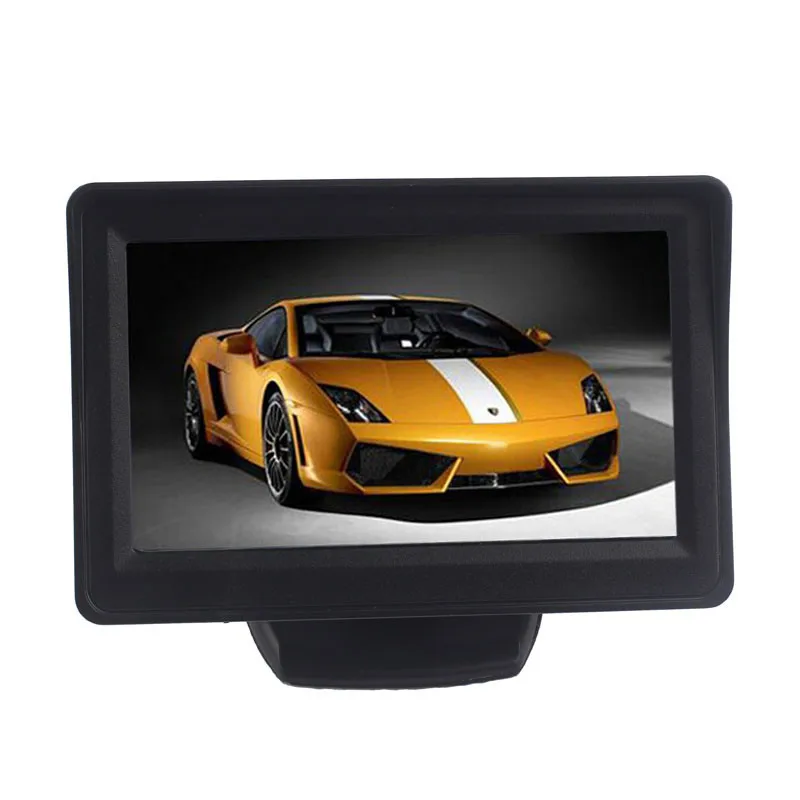

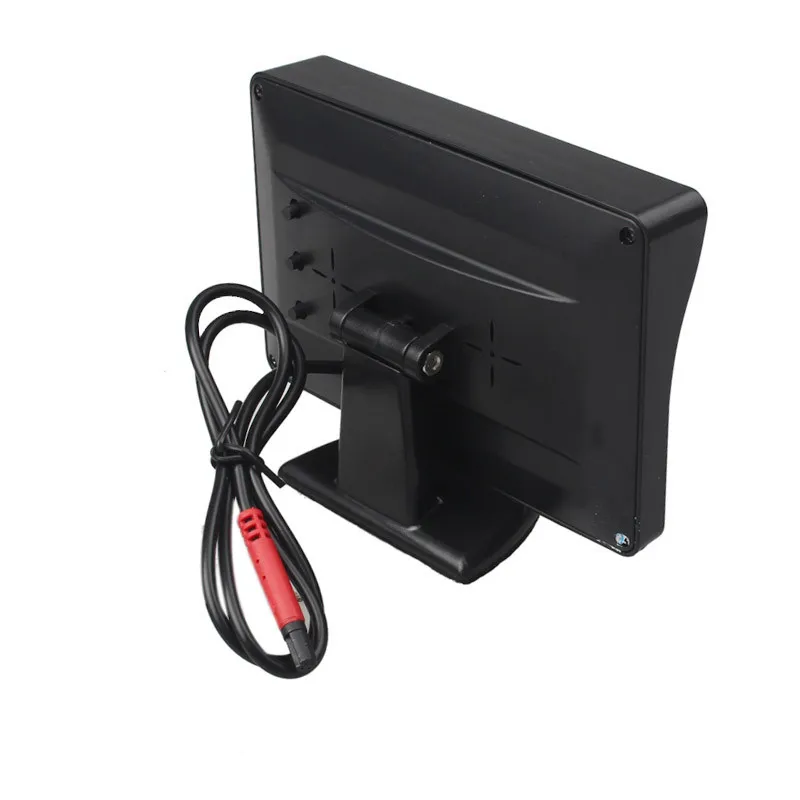

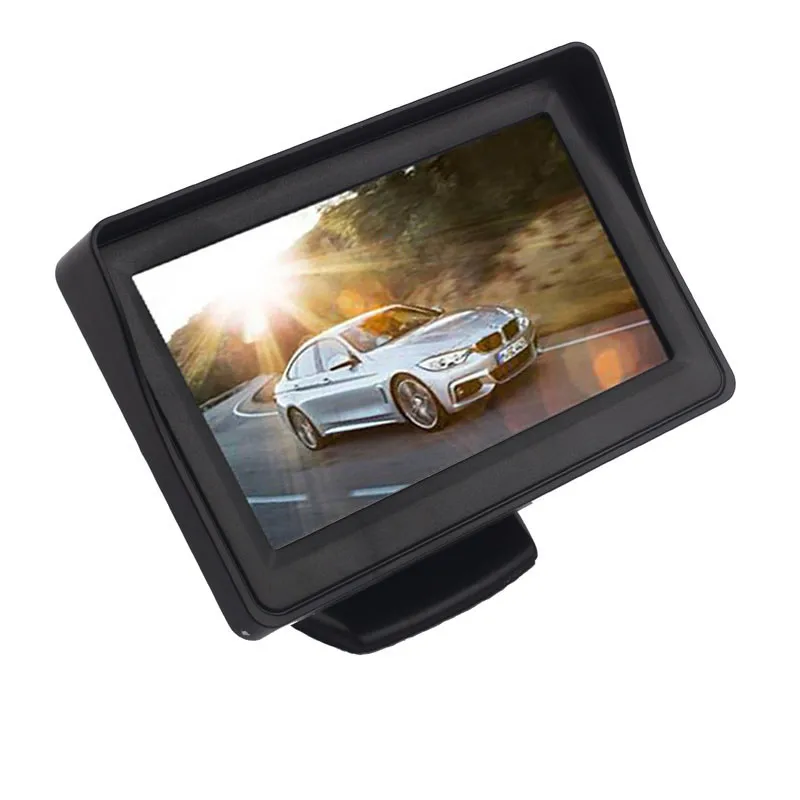

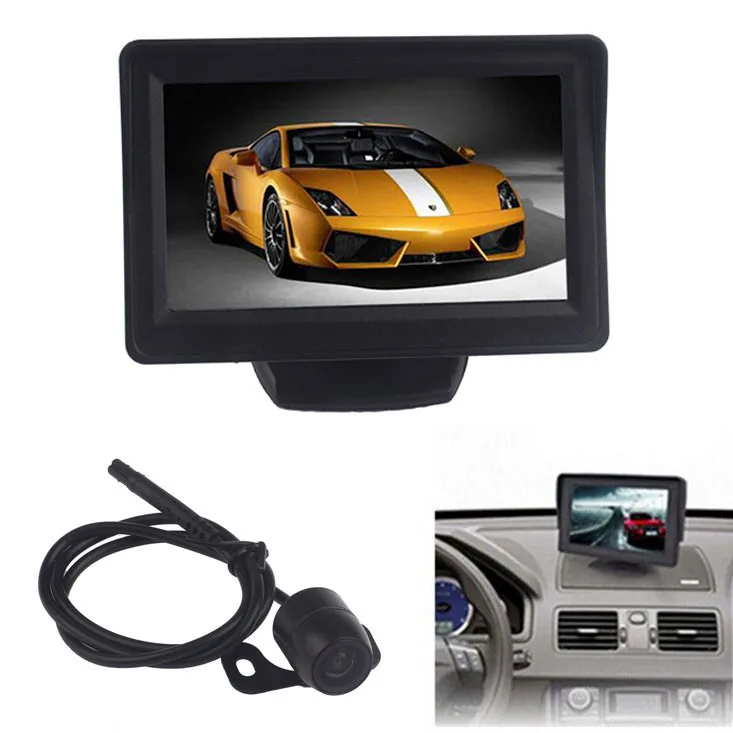

  • 1 x 4.3" TFT LCD Monitor

  • 1 x Power Cable

  • 1 x User Manual

  • 1 x Car Rear View Camera

  • 2 x Screw (NO Retail Box. Packed Safely in Bubble Bag)WSM50612092A_20150613090326492

WSM50612092A_20150613090327287 WSM50612092A_20150613092436361 WSM50612092A_20150613094715819 WSM50612092A_20150613091316652 WSM50612092A_20150613091458754 WSM50612092A_20150613091606425 WSM50612092A_20150613091611939




170210105358_

Q20170125161344_

20170218190607
